Small Size CNC Hot Wire Foam Cutter

Foamlinx small CNC hot wire foam cutter
Foamlinx small CNC hot wire foam cutter

Foamlinx FC2912 small CNC hot wire foam cutting machine

FC2912 - CNC Foam Cutter 29" x 12" x 36"

FC3618 - CNC Foam Cutter 36" x 18" x 48"

Designed to cut EPS, XPS, PE and EPP foam for creating 2D and 2-1/2D foam projects.

Small Cutters can be used for Creating signs, logo, letters, props, wings, airfoils and architectural shapes.

The FC2912 Automatic Hot Wire CNC Foam cutter is a cost effective 4 independent axis foam cutter.

The machine is light weight and can be stored away when not in use.
29" effective cutting on the X axis (Horizontal)
12" effective cutting on the Y axis (vertical)

36" wire length.

We now have a newly faster and more accurate designed machine Our FC3618 Automatic Hot Wire CNC Foam cutter is a cost effective 4 independent axis foam cutter.

36" effective cutting on the X axis (Horizontal)
18" effective cutting on the Y axis (vertical)

48" wire length.

  • 1/2" Ground and polished steel linear slide.

  • 12mm Ball Screw and Nut

  • Accuracy: 0.005"

  • Cutting speed: up to 30"/min

  • Jog speed: up to 30"/min

  • Cutting Wire included: 300 feet

  • True 4 axis - will cut tapered cuts (where one side is different than the other).

  • Motors: 4 independent stepper motors - NEMA17.

  • System Power requirements: 110V (220V) single phase 300W max

  • Warranty: 2 Year on mechanics, 1 year on electronics.

  • Assembly time: less than 30 min - comes fully assembled

  • Software: DevFoam Pro and Mach3 pre-installed and setup

  • Computer: Included

  • Monitor - not included

  • Automatic ON/OFF digital hot wire power supply

  • Return Policy


Pricing:
FC2912 - $5,500

  • Online training is included (internet connection is required)

  • Shipped UPS freight - about 150lbs

FC3618 - $7,000

  • Cutting speed: up to 40"/min

  • Jog speed: up to 50"/min

  • Online training is included (internet connection is required)

  • Shipped UPS freight - about 300lbs

***Prices do not include freight shipping - Contact us to receive a quote​​

SEE MORE OPTIONS

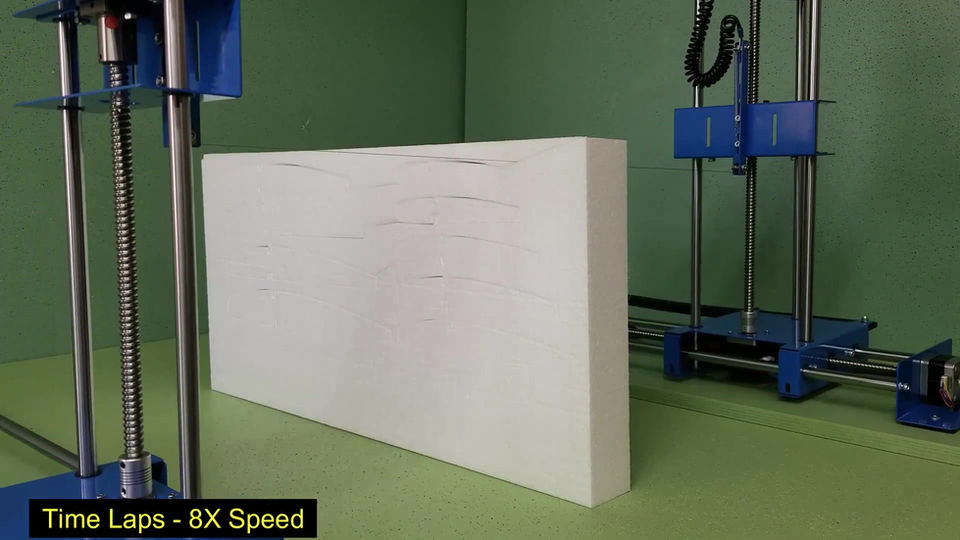

SEE IT IN ACTION
